Equipment for Forklifts, Loaders, Tractors and Handlers

Cargo Forklifts – SAUR

Name: Cargo Forklifts – SAUR
Brand: SAUR
Availability: InStock

SAUR forklifts combine advanced technology and robustness to optimize space, ensuring efficiency for warehouses, distribution centers, and industrial operations.

Find a consultant

Request quote

Description and Application

Product Details

SAUR forklifts enhance logistics efficiency with versatile solutions for different storage environments.

Find a consultant

Discover the SAUR Forklift models.

Front Loader – EFS SAUR Front-loading pantograph forklift – EFPS SAUR Trilateral Forklift – ETLS SAUR 45º Side Stacker – ELS SAUR SAUR Three-Way Stacker for Rolls and Coils (Robocop) Special Lifting Tower for Trilateral Access Guide Roller Assembly

O SAUR Front Stacker It offers hydraulic fork advancement, allowing trucks to be loaded and unloaded from a single side, reducing the need for maneuvering. It makes it possible to replenish shelves of double depth, optimizing space and increasing warehouse efficiency.

Battery capacity

From 1.500 to 3.000 kg.

Fork Length

1.200 mm.

Fork Advancement

From 335 to 1.400 mm.

Fork Inclusion

The equipment already includes the necessary forks for operation.

Features

1	Space Optimization It allows operations in more compact areas, reducing the need for forklift maneuvers.
2	Easy Access It feeds double-deep shelves and accesses loads in hard-to-reach locations.
3	Operational Agility Efficient loading from a single side of the truck bed, saving time in logistics operations.
4	Integrated Design Includes specific forks, ensuring compatibility and safety during use.

O SAUR Pantograph Front Stacker offers hydraulic pantograph advance to accommodate shelving double depthby reducing aisle space and optimizing room layout. It also facilitates the loading and unloading of trucks from just one side, making operations more efficient.

Battery capacity

From 1.500 to 8.000 kg.

Fork Advancement

From 860 to 1.550 mm.

Compatibility

It uses the forklift's original forks.

adjustability

Allows for manual separation of the forks for greater operational flexibility.

Features

1	Space Optimization It reduces the need for additional aisles in warehouses with double-deep shelving.
2	Operational Versatility Ideal for side loading of trucks and efficient storage.
3	Agility and Precision The pantograph system ensures smooth and fast movements, increasing productivity.
4	Compatibility and Flexibility Integrated into the forklift's original forks, with manual adjustment for different types of loads.

The Trilateral Stacker maximizes the use of narrow aisles with a 180° front swing and movable forks, increasing operational efficiency. Furthermore, it delivers significant savings in space, infrastructure, and maintenance costs.

Battery capacity

Supports up to 1.500 kg.

Fork Length

From 950 to 1.150 mm.

Hydraulic Rotation

180° rotation to both sides, providing access to both sides of the shelving unit.

Hydraulic Leveling

Ensures accurate load positioning.

Features

1	Space Saving It reduces the width of the aisles required, maximizing storage density.
2	Operational efficiency Front rotation and side movement allow quick access to the shelves without extra maneuvering.
3	Structural Economics It minimizes costs associated with building construction and maintenance.
4	Stability and Precision Hydraulic leveling system and optional guidance ensure safety and accuracy in operations.
5	Versatility Adaptable to various types of forklifts and warehouse layouts, and to forklifts weighing from 2.500 to 4.000 kg.
6	Necessary Hydraulic Functions Four functions for complete operation.

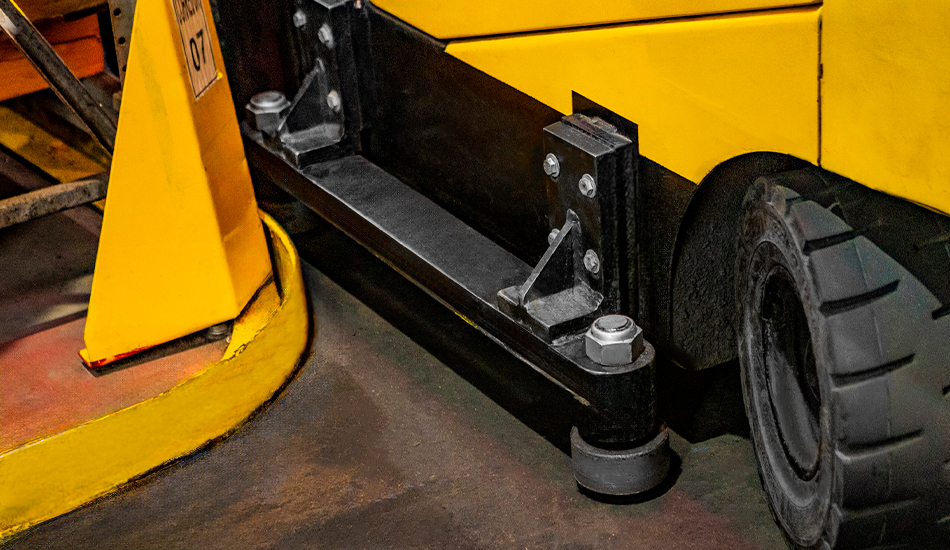

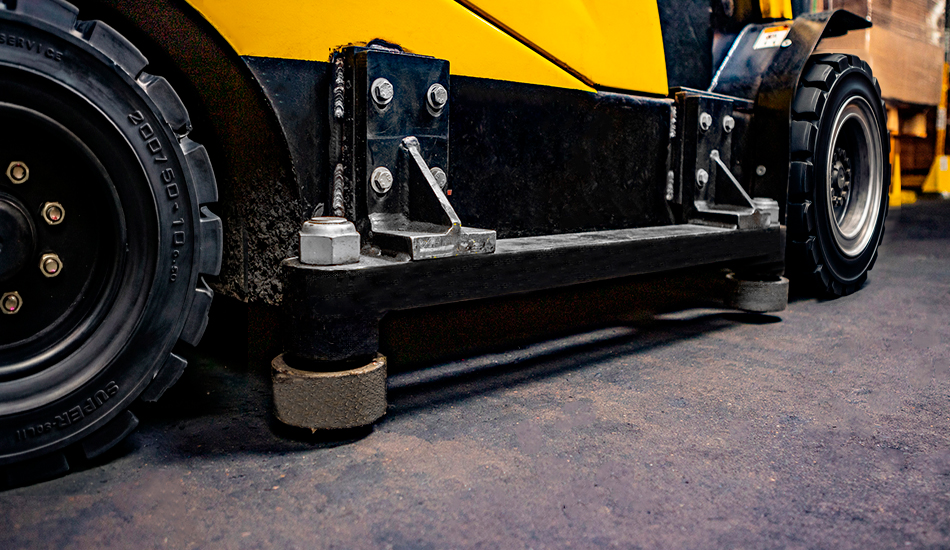

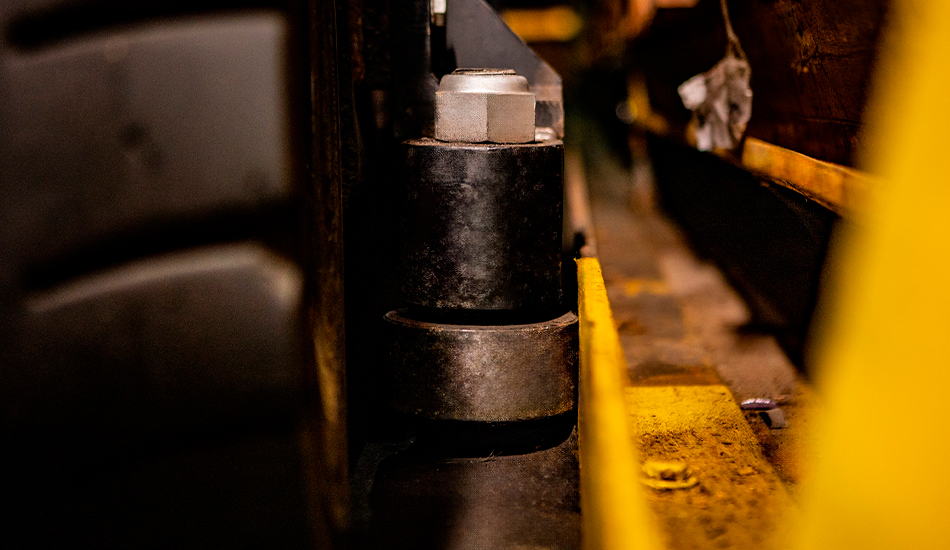

7	Guide Roller Assembly (optional) To guide the forklift between side rails in narrow aisles (drive-in).
8	Special Lifting Tower for ETLS (optional) To use the original 2-stage forklift mast, consider reducing the existing height by 1.000 mm.

The SAUR 45° Side Stacker allows operation in narrow aisles from 2.600 to 3.000 mm, ideal for areas with limited space. Available in a double model, with a 45° side opening on both sides.

Battery capacity

From 1.500 to 3.500 kg.

Side Opening

45° to one side (requires a hydraulic function). – Single Model 45° to both sides (requires two hydraulic functions). – Double Model

Compact Design

It reduces the required width of the corridors for maneuvering.

Features

1	Space Reduction It allows for operations in narrower aisles, optimizing the use of warehouse space.
2	High Productivity Agile and precise movement, reducing operating time.
3	Operational Versatility Suitable for different layouts and types of cargo.
4	Security and Stability Efficient lateral operation without compromising forklift stability.

This equipment offers speed and complete safety in handling wire rolls and steel coils. It allows direct loading from the back of the truck, without side opening. The load is positioned longitudinally, speeding up the logistics flow and increasing productivity.

Battery capacity

Supports up to 5.000 kg.

Fork length

1.800 to 1.900mm

Line of Business

Rotator with continuous 360º rotation.

Features

1	Agility and Security Quick and safe operation for loading and unloading wire rolls or steel coils.
2	Optimized Charging Direct loading from the rear of the truck, without the need to open the side door, with longitudinal arrangement of the load.
3	Versatility Configurable structure with 1 or 2 rods, ensuring operational versatility.

Maximum Fork Elevation

Up to 7.200 mm.

Maximum Height of the Tower

Up to 8.400 mm.

Features

1	Greater load lifting Special 2-stage Lifting Tower for Trilateral.
2	Elevator Lock (Optional) Overload locking system for lifting.
3	Height Indicator (Optional) Fork height indicator.
