Description and Application

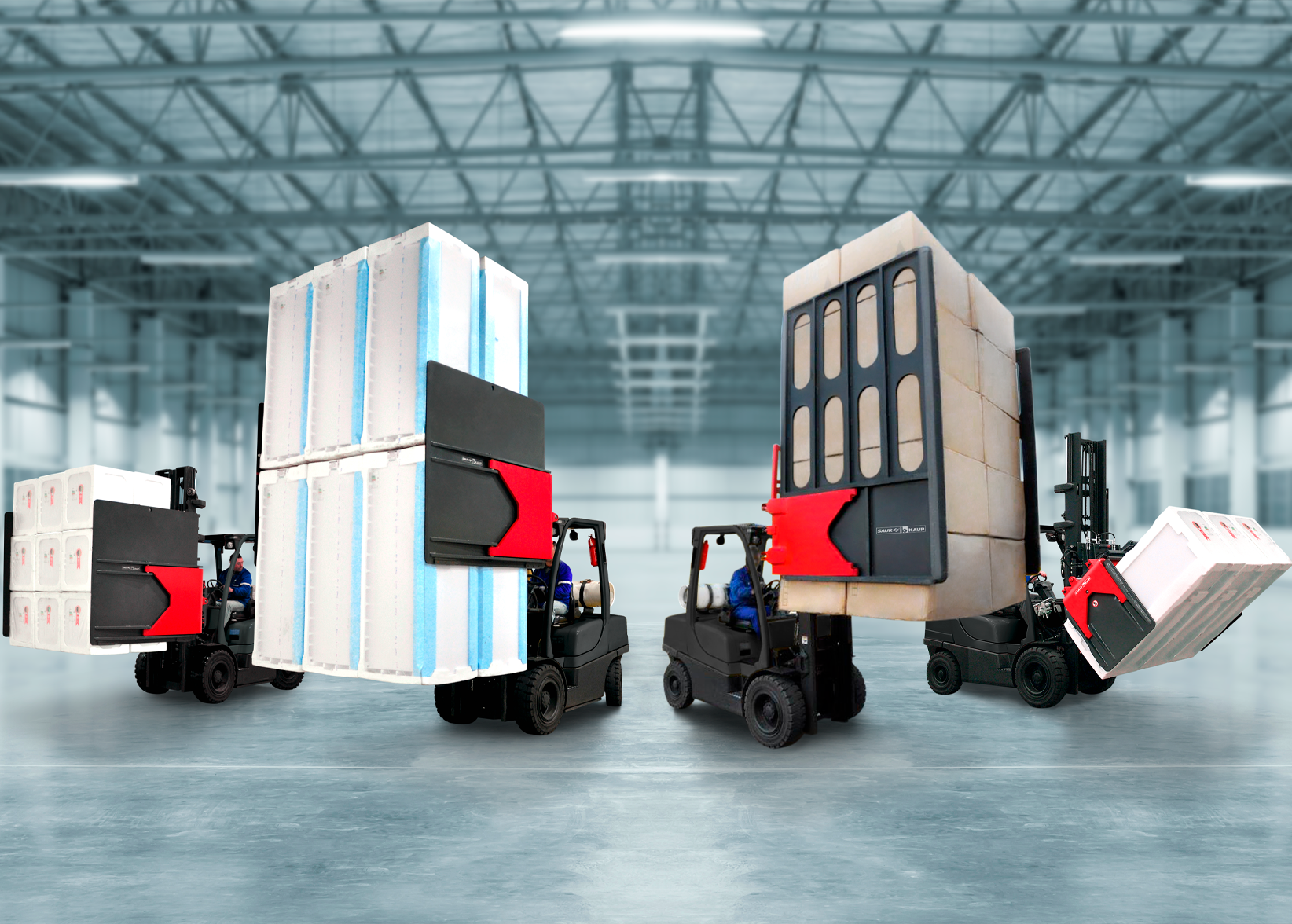

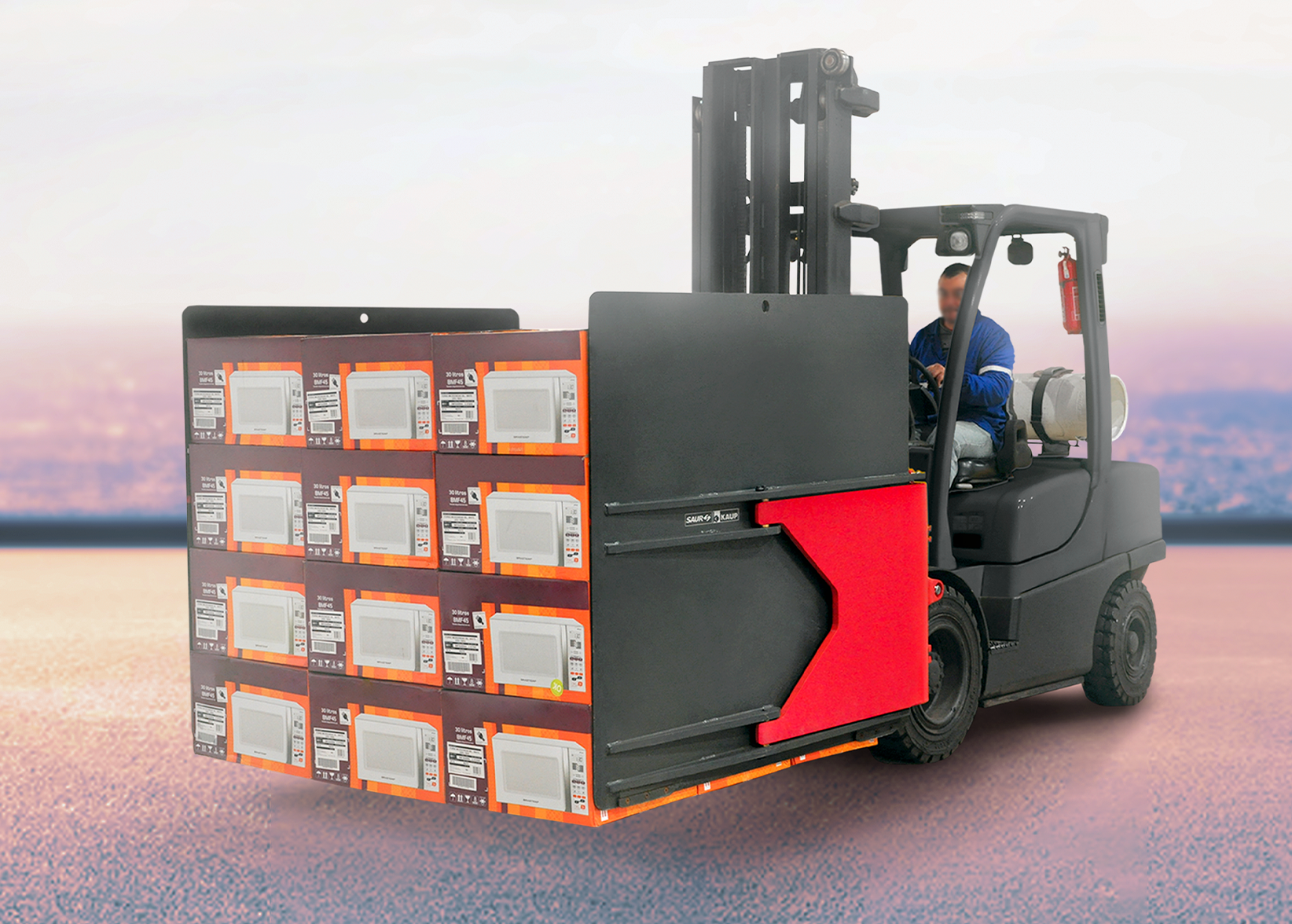

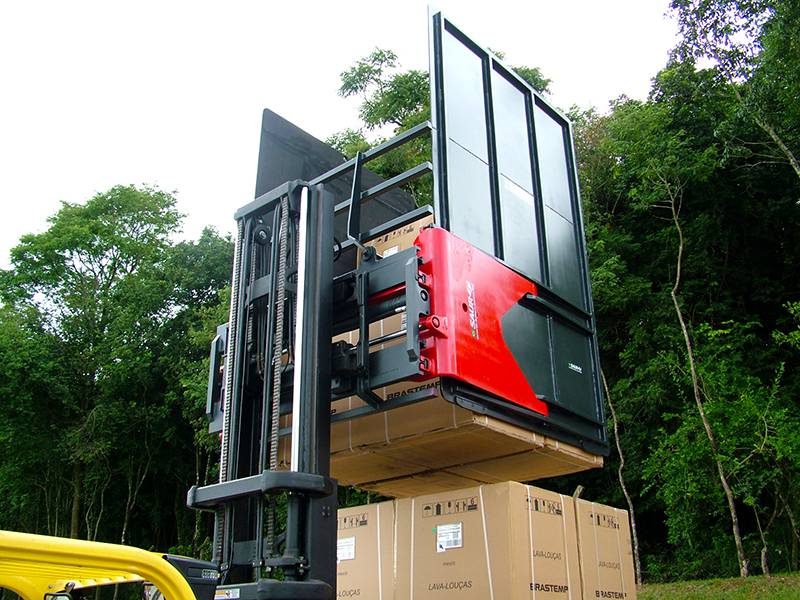

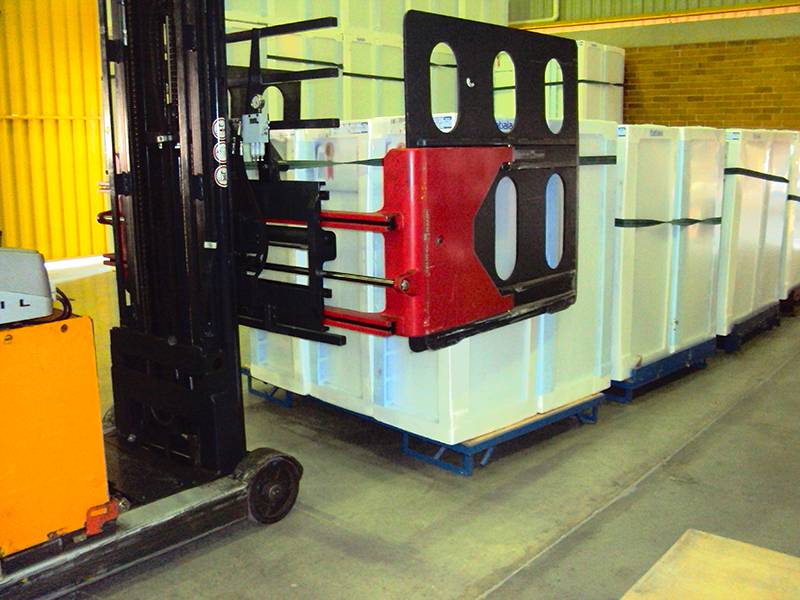

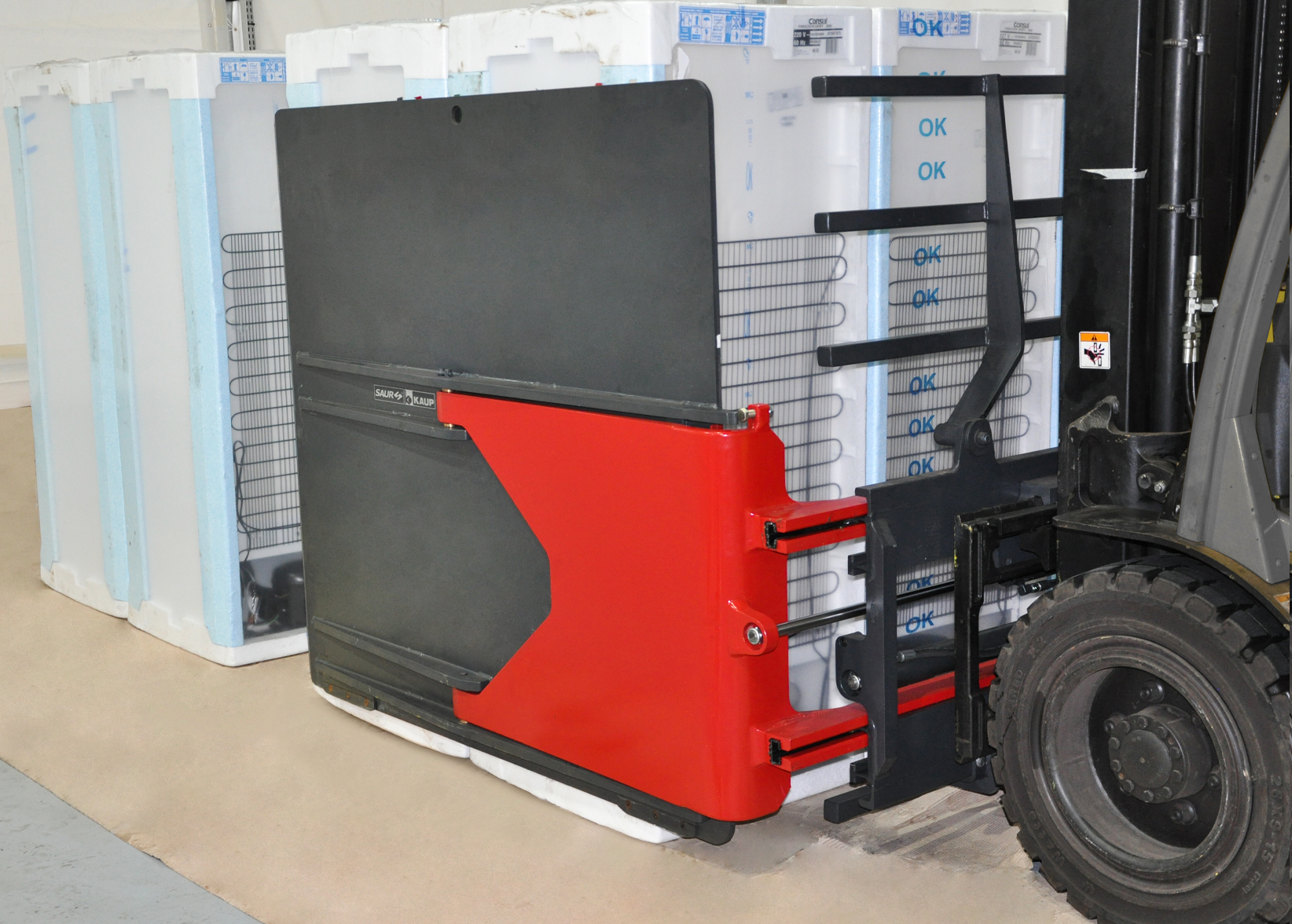

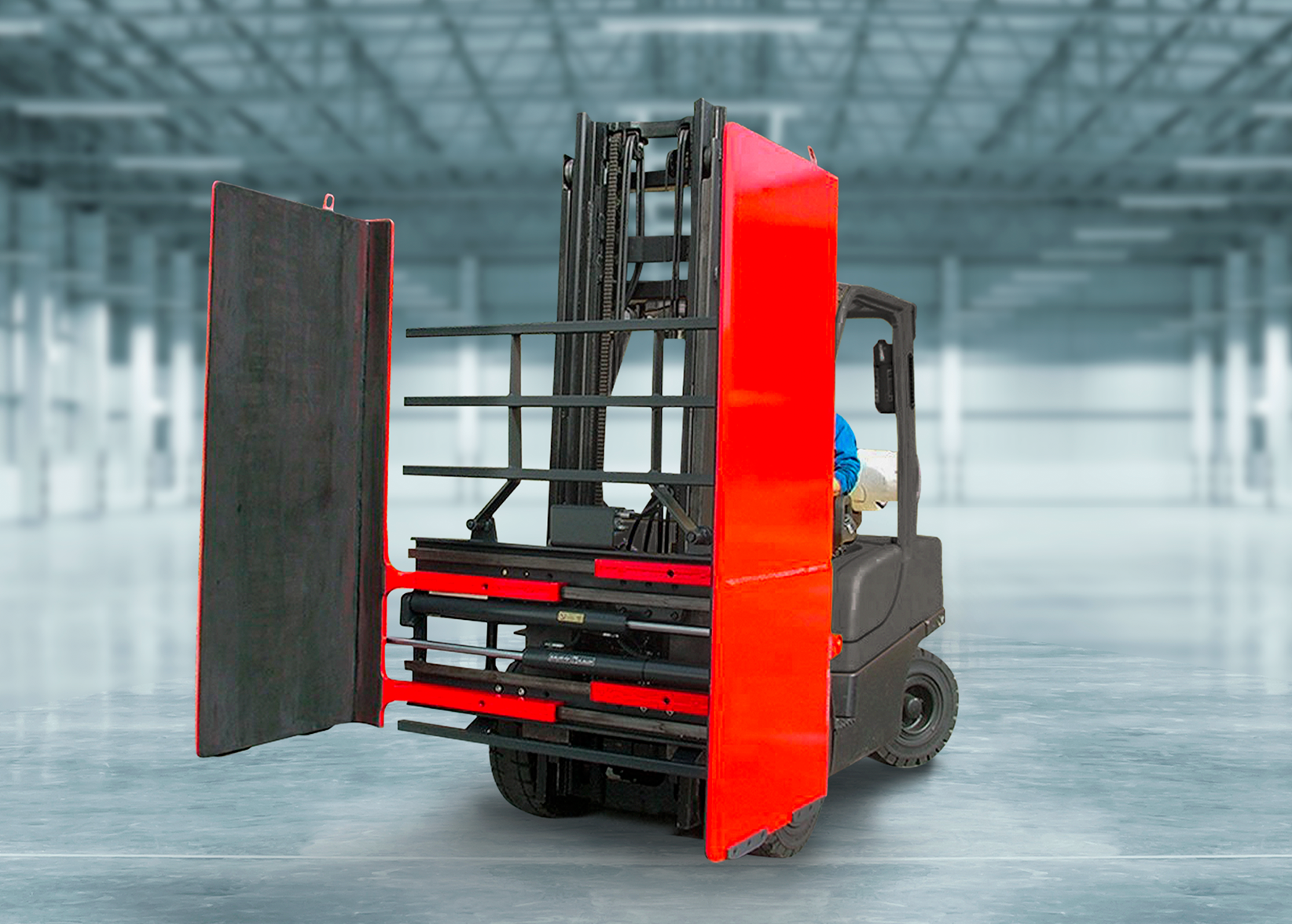

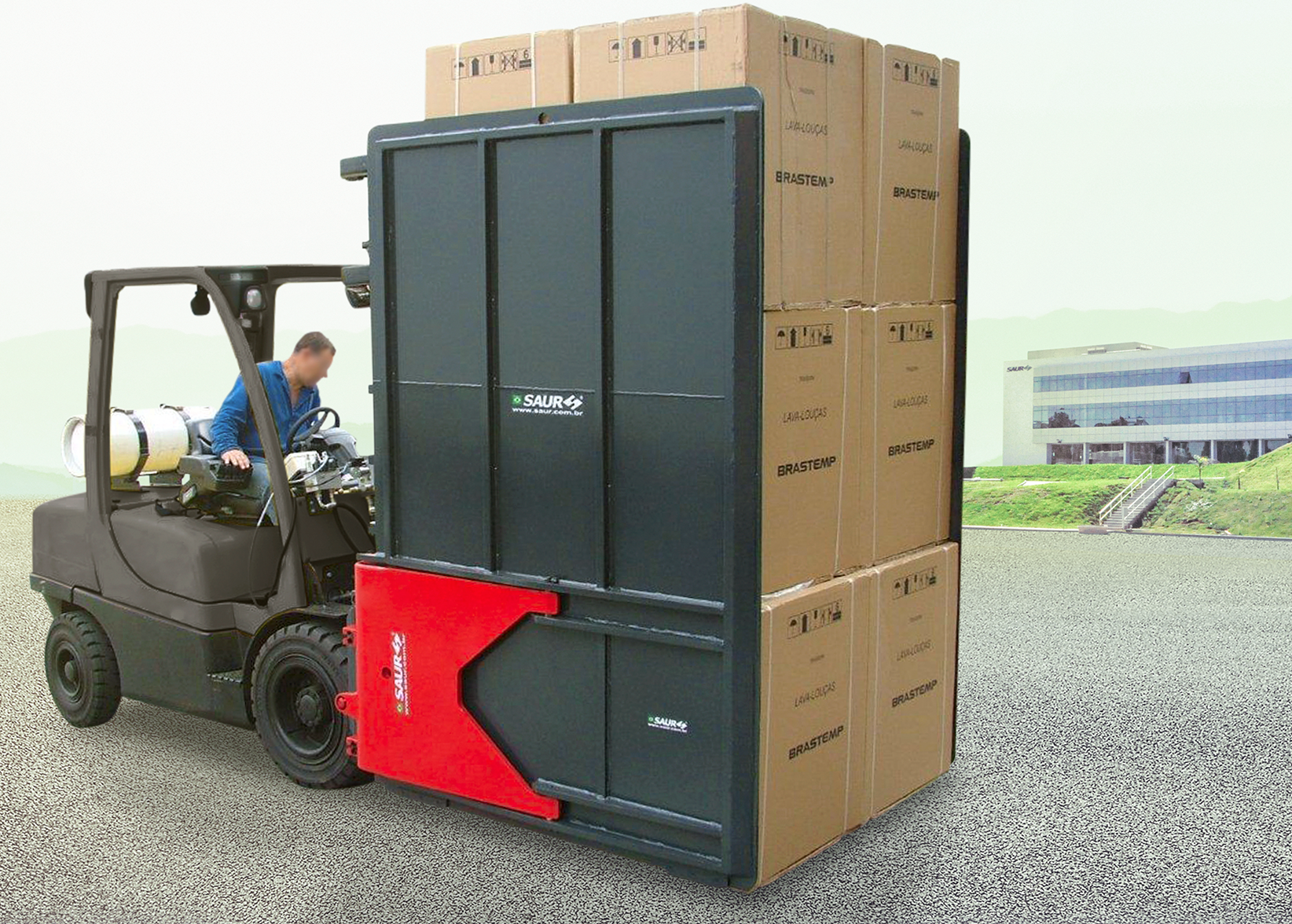

The SAUR Appliance Clamp is ideal for handling large volumes in whole load blocks or on layers of individual boxes. Eliminates the use of pallets and all costs inherent to its employment. Less damage to packaging/goods, safety in operations and high productivity are the leading benefits in using this equipment.

Specifications

  • Capacity: 1,000 to 2,000 Kg
  • Opening: 450 to 2,480 mm
  • Arms finished internally in non-slip rubber
  • Diverse sizes and types of arms
  • Protection grille along the body of the clamp

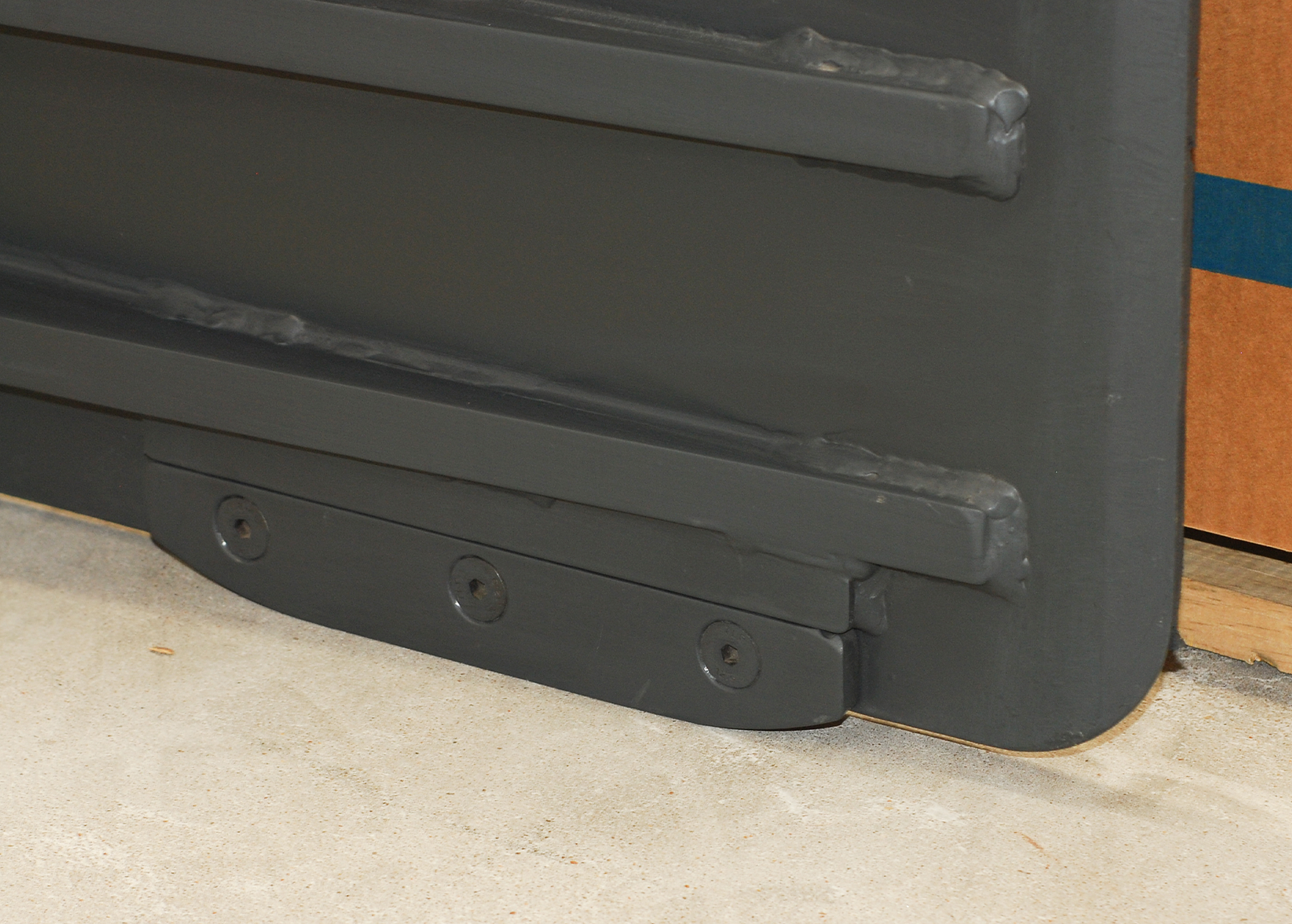

  • Wear plate under the forks
  • Clamp pressure controlled by regulating valve

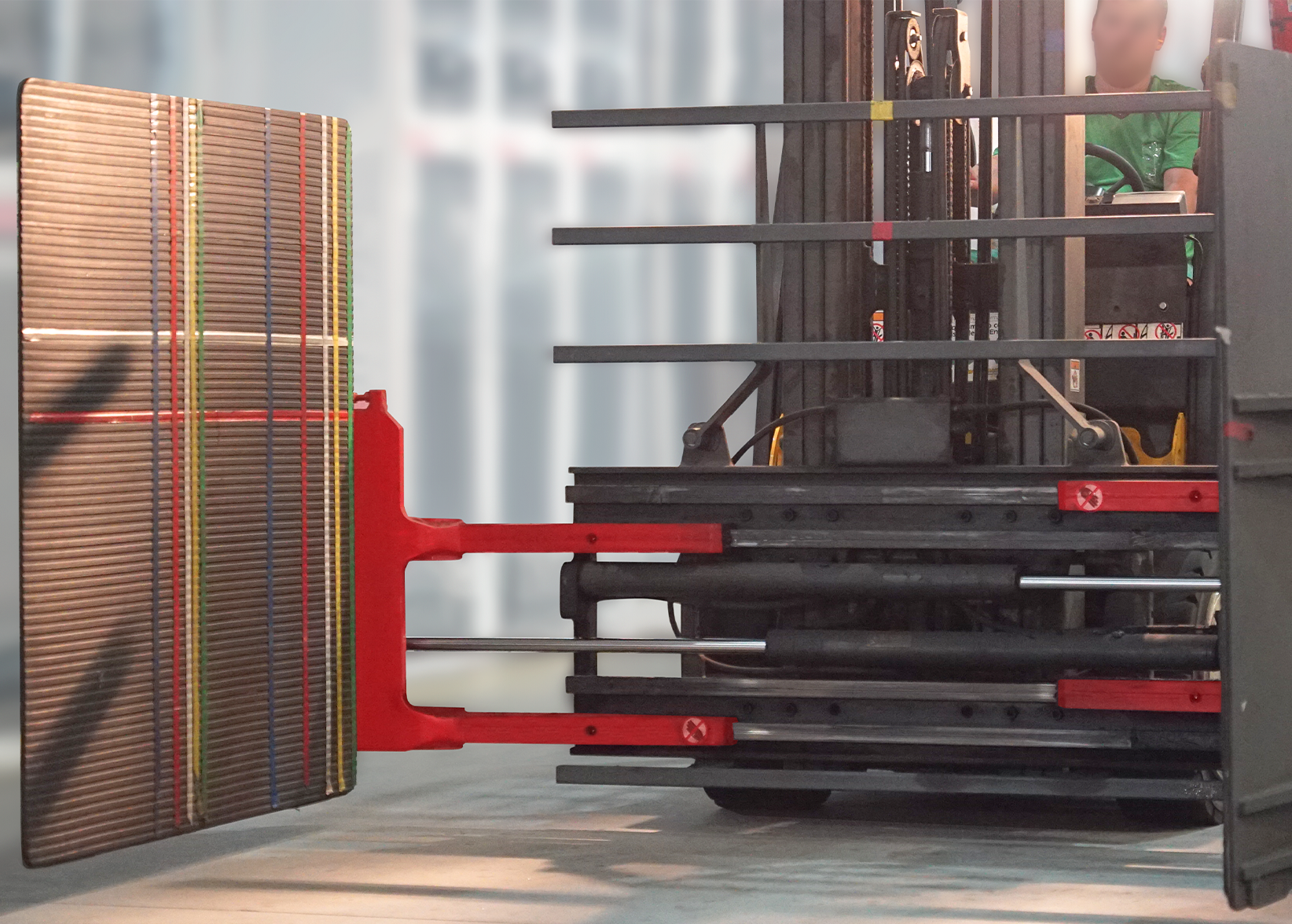

  • Synchronism of arms by means of oil flow divider
  • Guides with self-lubricating bushings

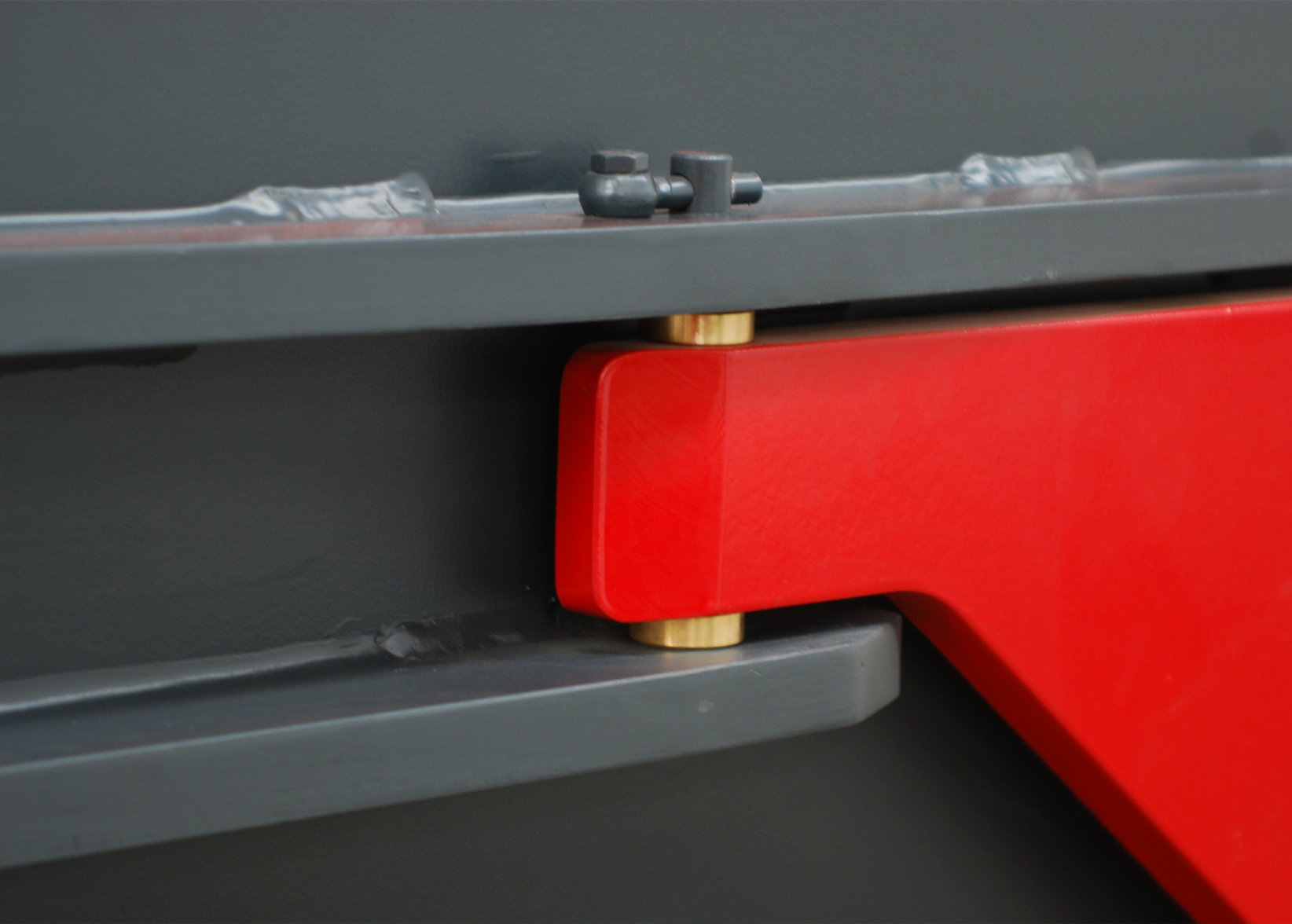

  • Swiveling arms to evenly divide the clamp strength
  • Hitch according to stacker /> Optional side shift
