Description and Application

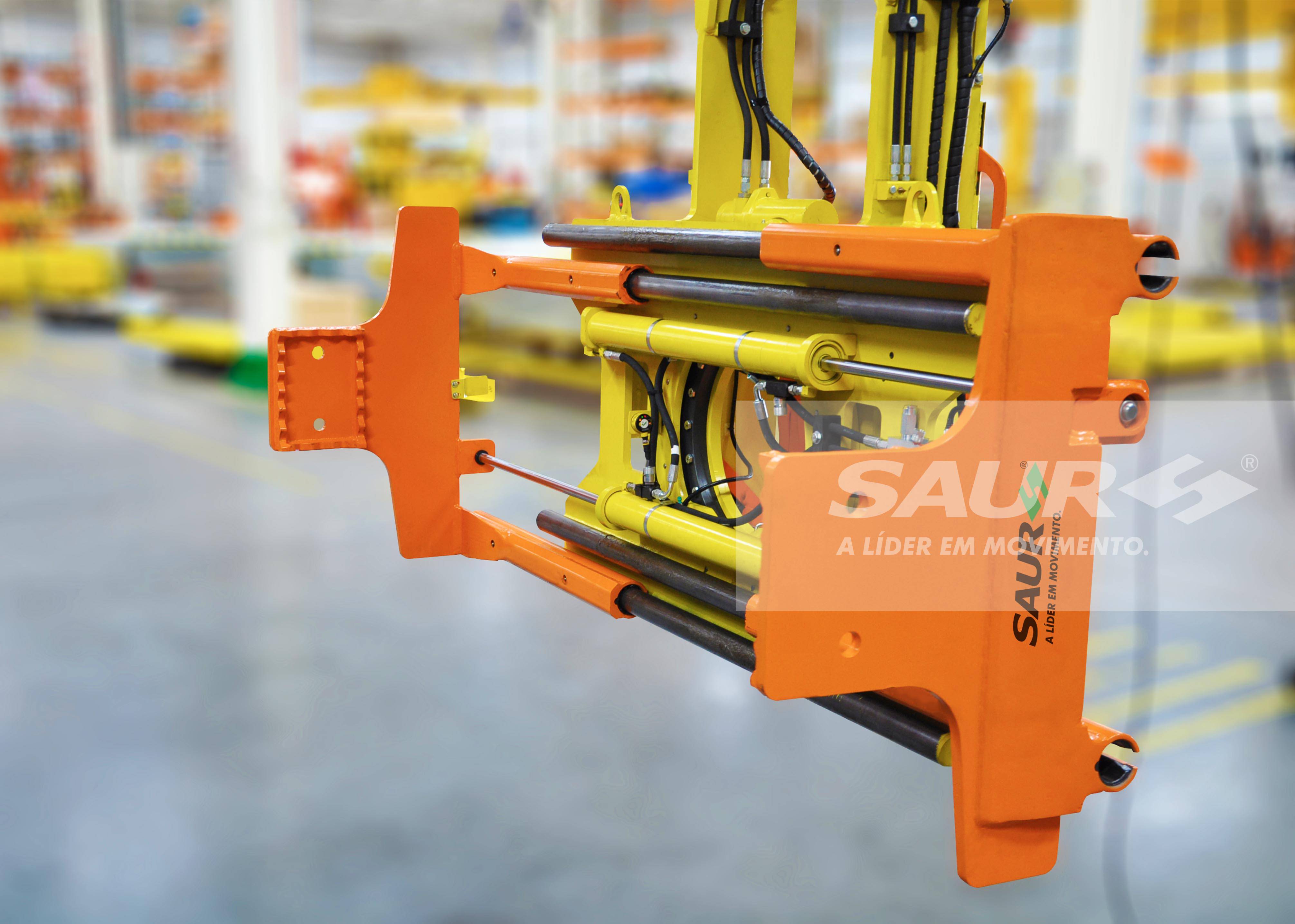

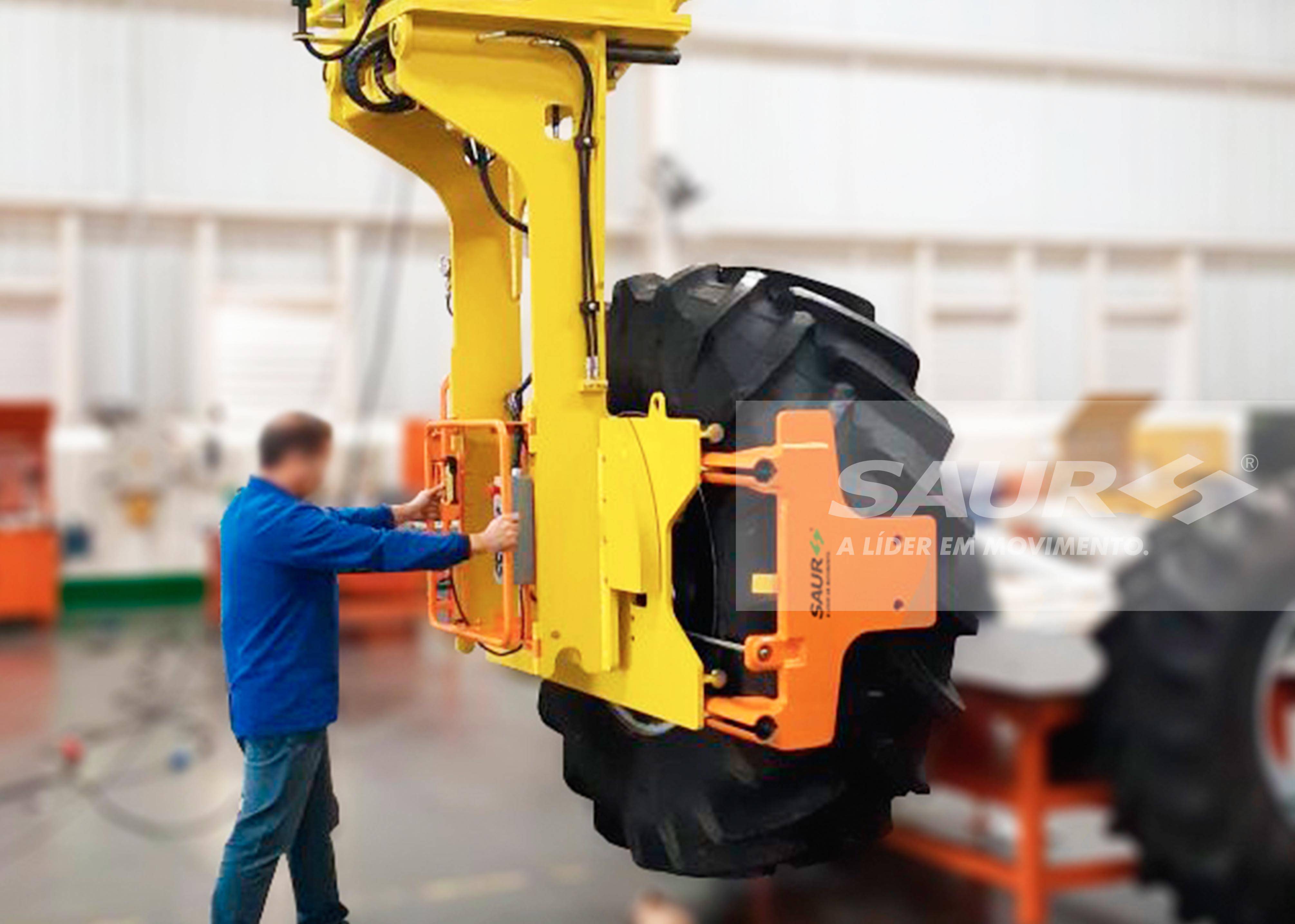

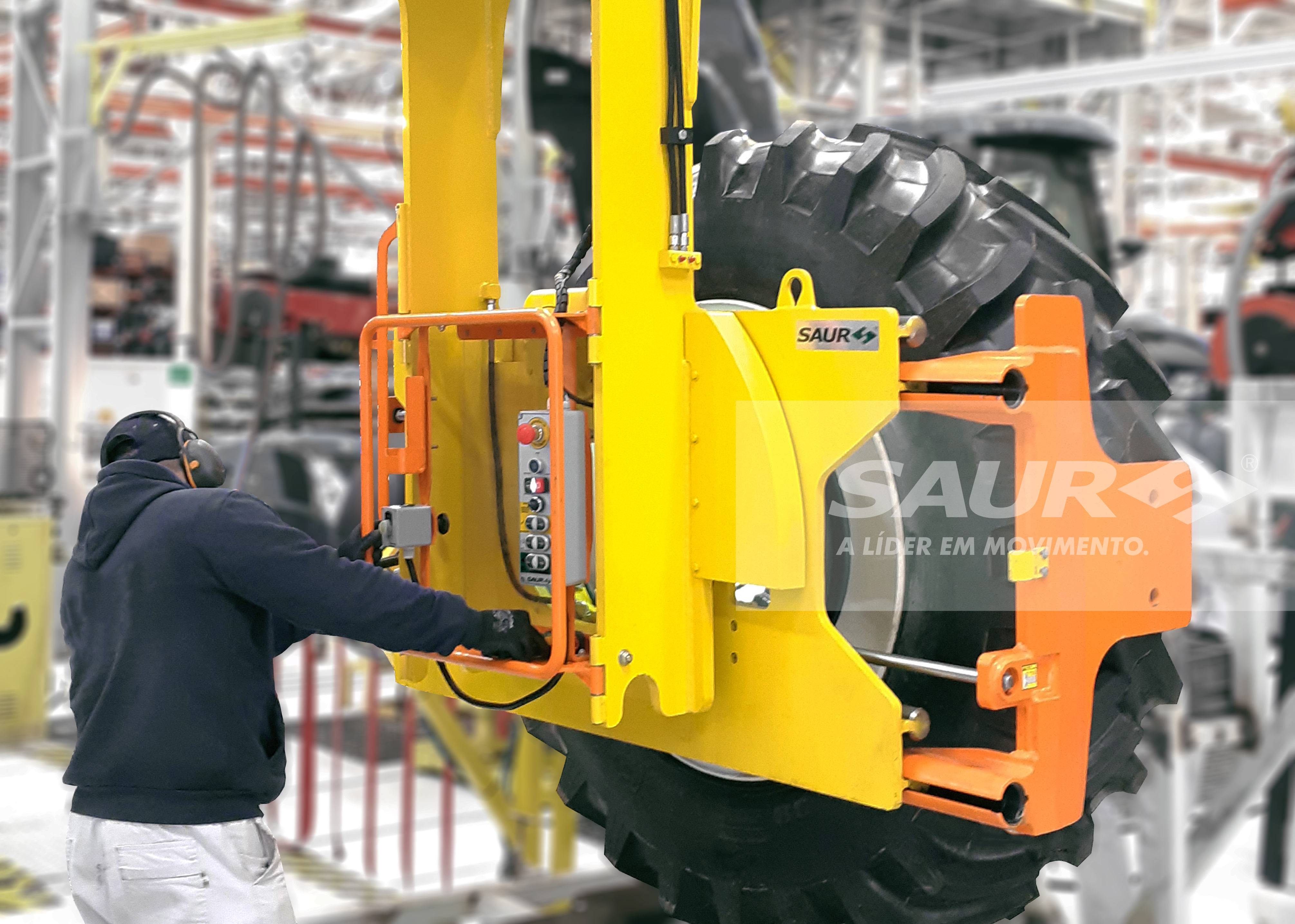

Seeking to optimize the assembly process of tires on tractors, Saur Equipamentos S.A. developed an intelligent system for this purpose. The system is comprised of a structure with two devices equipped with a clamp, operated individually. The clamps, in turn, are able to make vertical, horizontal and rotation movements simultaneously, all controlled via remote control, resulting in easy and accurate assembly, thereby allowing for simultaneous assembly of tires on both sides of the tractor, doubling efficiency and speed on the assembly line.

Specifications

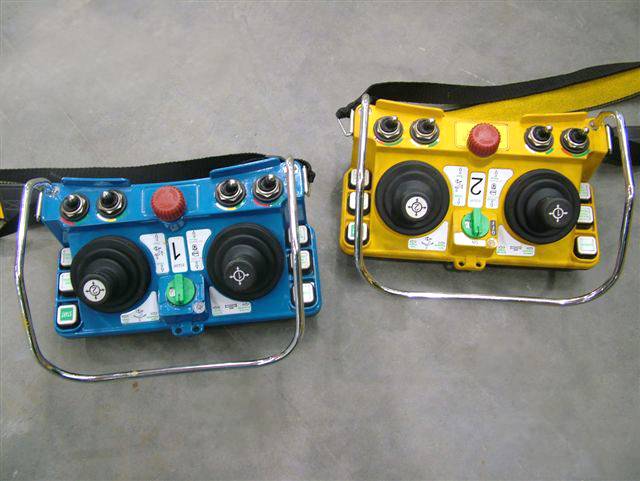

  • Hydraulic unit controlled via remote
  • Access steps with fall arrester system Electrical buffers at the end of the course
  • Operation indicators Safety body rail on upper section
  • Capacity of 2,000 Kg 30 Hp of power

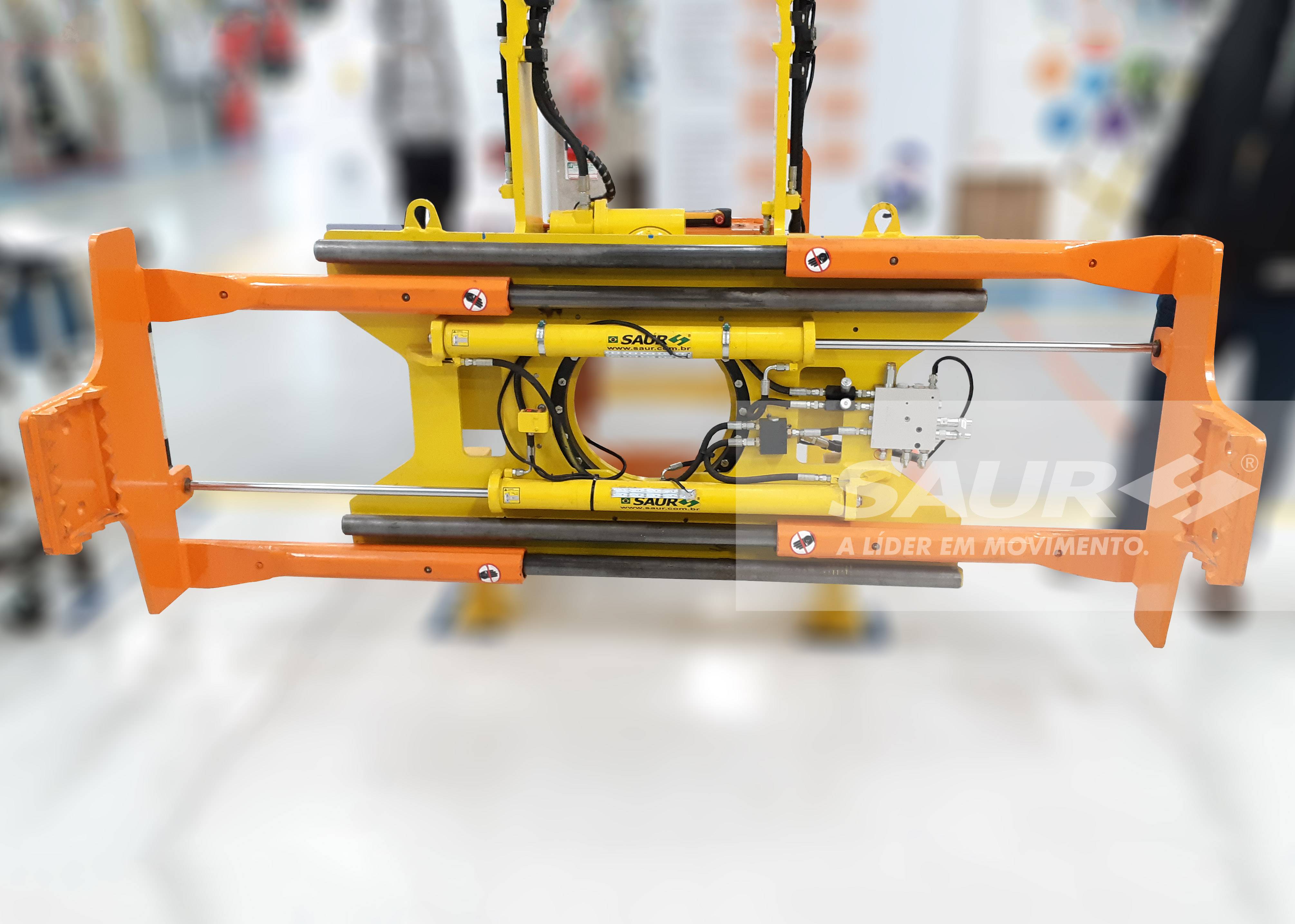

  • Clamp opening of 680 to 2,200 mm
  • Emergency buttons on the columns
  • Elevation from 500 to 1,500 mm (considering from the floor to the center of the clamp) tilt of +10° and -10° Includes extenders for probable maintenance
  • Proportional movements, where their speeds can be varied
  • Continuous rotation (worm shaft system)
