Description and Application

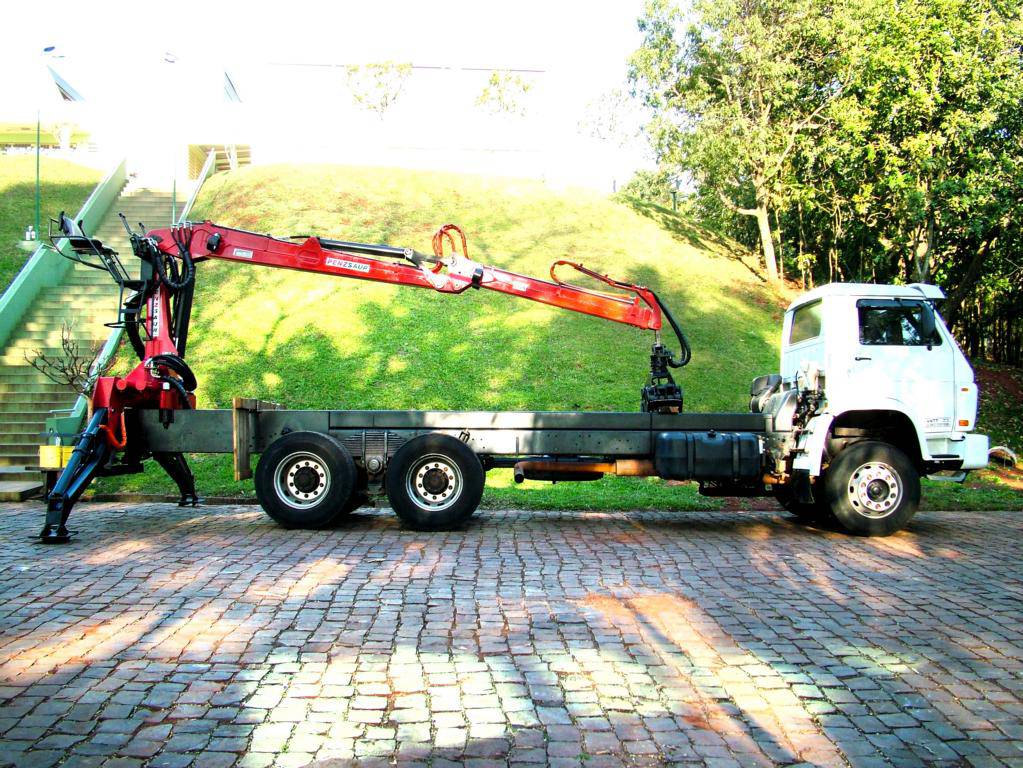

With the applied technology of PENZSAUR manufacturing processes it has been possible to design Forest Cranes with 5 tonne capacity. With low weight, higher capacity, higher productivity, better performance, high speeds and modern design, these cranes can be installed on tractors, trucks and self loaders.







Specifications

  • Usage: Truck
  • Loading Moment: 54 kNm
  • Arm length:7,5m
  • Angular Moment - Torque: 20,7 kNm
  • Rotation Angle: 380°
  • Nett Weight: 2000kgf
  • Operational Pressure: 160 bar
  • Hydraulic Flow: 2x70 l/min Integrated stabilizer
