Description and Application

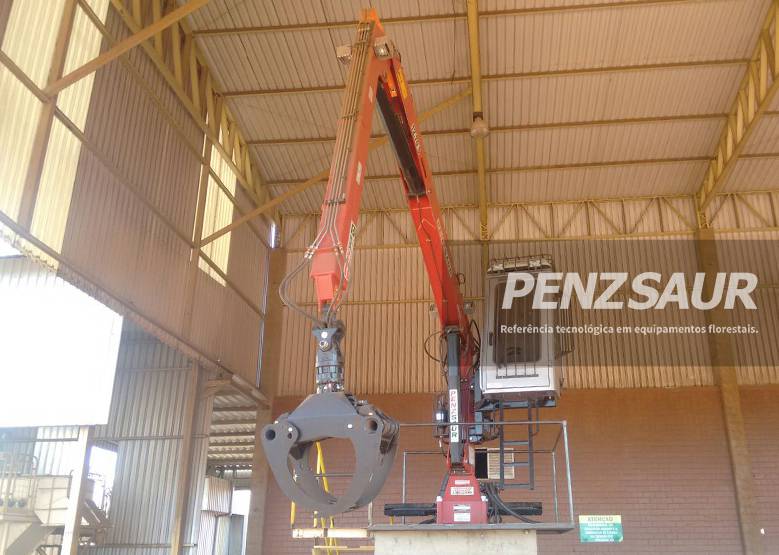

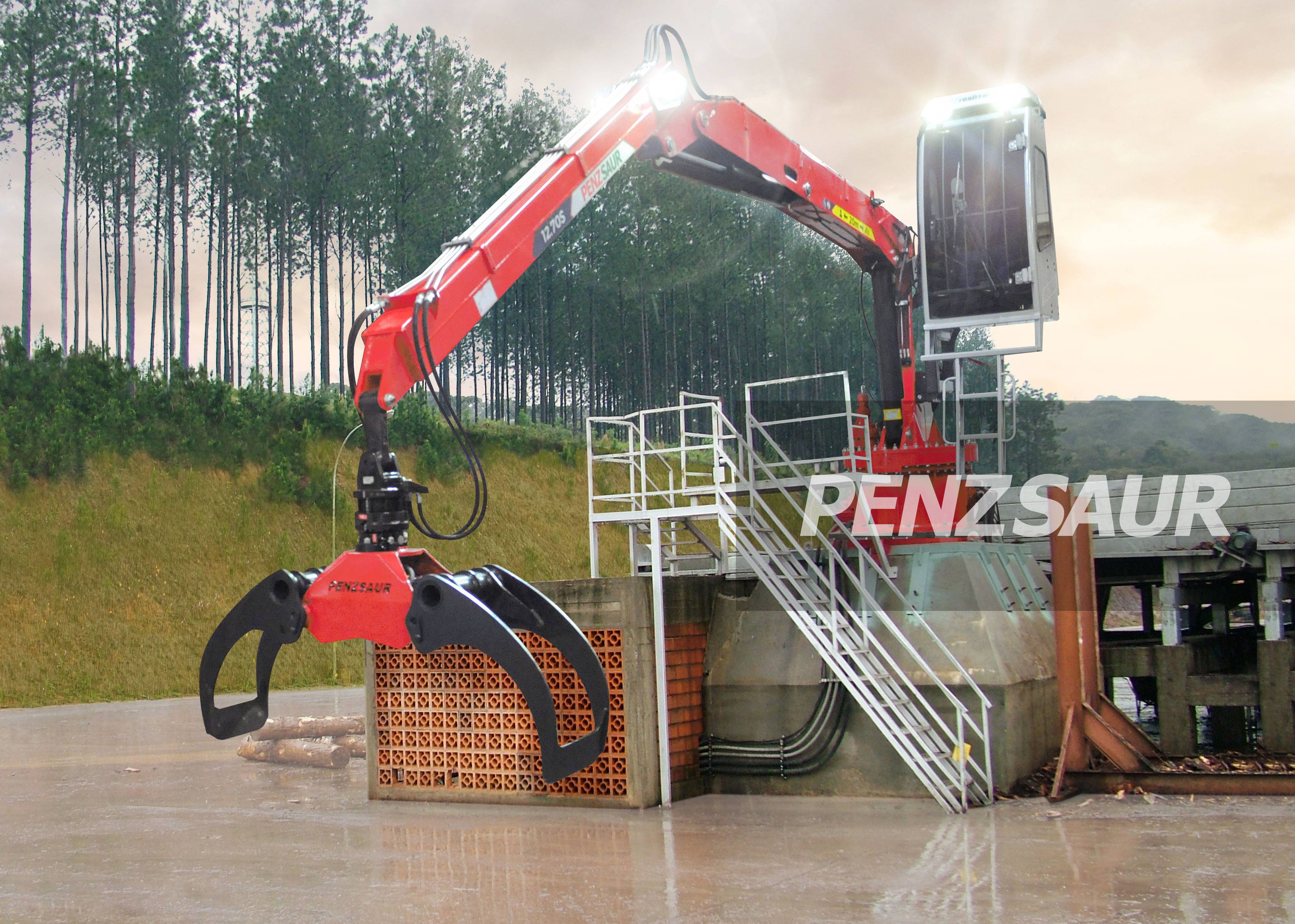

With PENZSAUR stationary cranes it is possible to handle logs in loading and unloading areas, feed chippers, transport belts and cauldrons, with investment and operational costs lower than those of cranes on tractors or trucks. They are scaled to support heavy service with usage of up to 24 hours per day. Our most robust models can have the claws adapted, making the handling of large loads of wood possible. They have a double circuit hydraulic system with security devices in accordance with the CE regulations. They also have various other features including pressure accumulators to absorb impact and an operator's cabin.













Specifications

  • Usage: stationary
  • Loading Moment: 120 kNm
  • Arm length:7m
  • Angular Moment - Torque: 25,3 kNm
  • Rolling slewing system
  • Rotation Angle: 380°
  • Nett Weight: 1600 kgf
  • Operational Pressure: 230 bar
  • Hydraulic Flow: 2x80 l/min
